Part # 50169SKU EDE50169
Set your vehicle above for a fit verdict. 7 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Assembled | Yes |
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Combustion Chamber Volume | 55 cc |
| Construction Type | Complete |
| Cylinder Head Gasket Included | No |
| Deck Height | 9.429 in |
| Deck Thickness | 0.750 in |
| EGR Port | No |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 77 |
| Exhaust Valve Diameter | 1.50 in |
| Family | Performer |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | 31-50159 |
| Horsepower | 200-300 |
| Intake Runner Volume | 144 cc |
| Intake Valve Diameter | 1.91 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Rocker Arm Studs/Bolts Included | No |
| Rocker Arms Included | No |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
| Seat Material | Ductile Iron |
| Series | Performer |
| Valve Angle | 10 deg |
| UPC / GTIN | 00085347501694 |

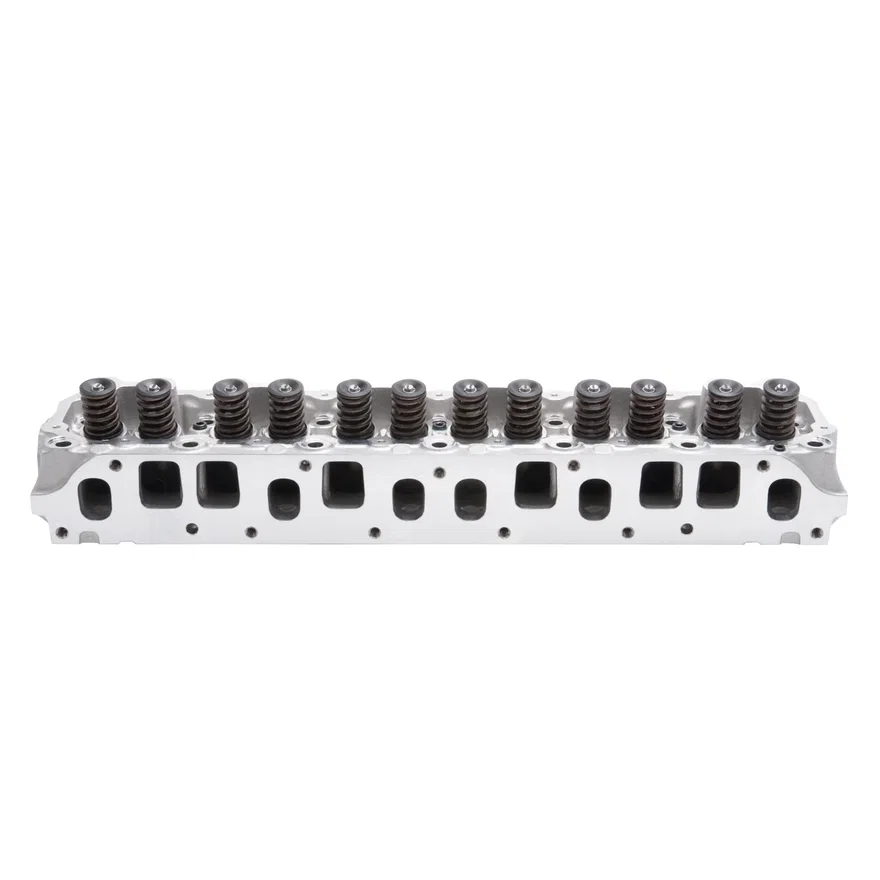

The Edelbrock #50169 Performer Cylinder Head is designed as a bolt-on performance upgrade for 1987-2006 Jeep's with a 4.0L inline six engine. They feature better flowing intake/exhaust ports along with a modern combustion chamber design and back cut and swirl polished valves for improved flow. Retains the stock valve angle, pushrod length and valve cover bolt pattern for use with factory components and off the shelf accessories. Larger reinforced rocker bosses for improved strength at high RPM and Heli-Coil threaded inserts in the intake manifold bolt holes for added strength as well as a 3/4" deck throughout the head also promotes stiffness and durability. This cylinder head is machined to accept both distributor or coil pack ignition. To optimize airflow, this cylinder head is designed with a 1991-2006 4.0L intake port location and 1991-98 4.0L exhaust port size. As a result, this cylinder head must be used with a 1991-2006 intake manifold and a 1991-1998 exhaust manifold. Aftermarket exhaust headers can also be used in place of 1991-1998 exhaust manifolds and MUST be used in place of 1999-2006 exhaust manifolds. Most aftermarket exhaust headers are compatible, but please check with the exhaust header manufacture to verify. This head is NOT compatible with 1999-2006 OEM exhaust manifolds.
| 60455 | $2,206.99 |
| 77621 | $2,581.99 |
| 60069 | $1,777.99 |
| 5089 | $2,579.99 |
| 61555 | $2,926.99 |
| 77620 | $2,366.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1987 - 2001 | Jeep | Cherokee | 4.0L 242 I6 |
| 1987 - 1992 | Jeep | Comanche | 4.0L 242 I6 |
| 1993 - 2004 | Jeep | Grand Cherokee | 4.0L 242 I6 |
| 1997 - 2006 | Jeep | TJ | 4.0L 242 I6 |
| 1987 - 1990 | Jeep | Wagoneer | 4.0L 242 I6 |
| 1991 - 1995 | Jeep | Wrangler | 4.0L 242 I6 |
| 1997 - 2006 | Jeep | Wrangler | 4.0L 242 I6 |
