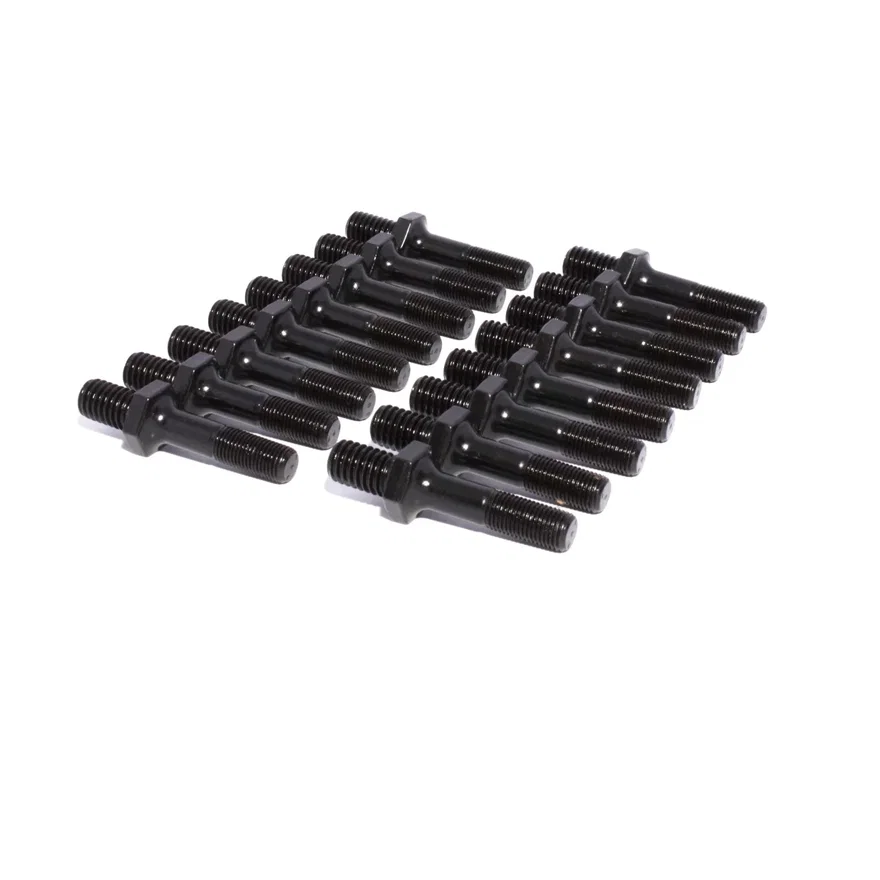

COMP Cams Hi-Tech Rocker Stud Set w/ 7/16" Base Thread and 3/8" Rocker Thread

COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energyâ„¢ and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Techâ„¢ Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Desi gned for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area.

< table border="1">< tr>< td colspan="2"> Base Thread</td>< td colspan="2"></td></tr>< tr>< td> Part #</td>< td> Description</td>< td> Diameter</td>< td> Length</td>< td> Stud Diameter</td>< td> Effective Stud Length</td></tr>< tr>< td>4505-16</td>< td> Hi-Tech Race Rocker Stud</td>< td>7/16"</td>< td>.680"</td>< td>3/8"</td>< td>1.750"</td></tr></table>
