COMP CamsMore from COMP Cams

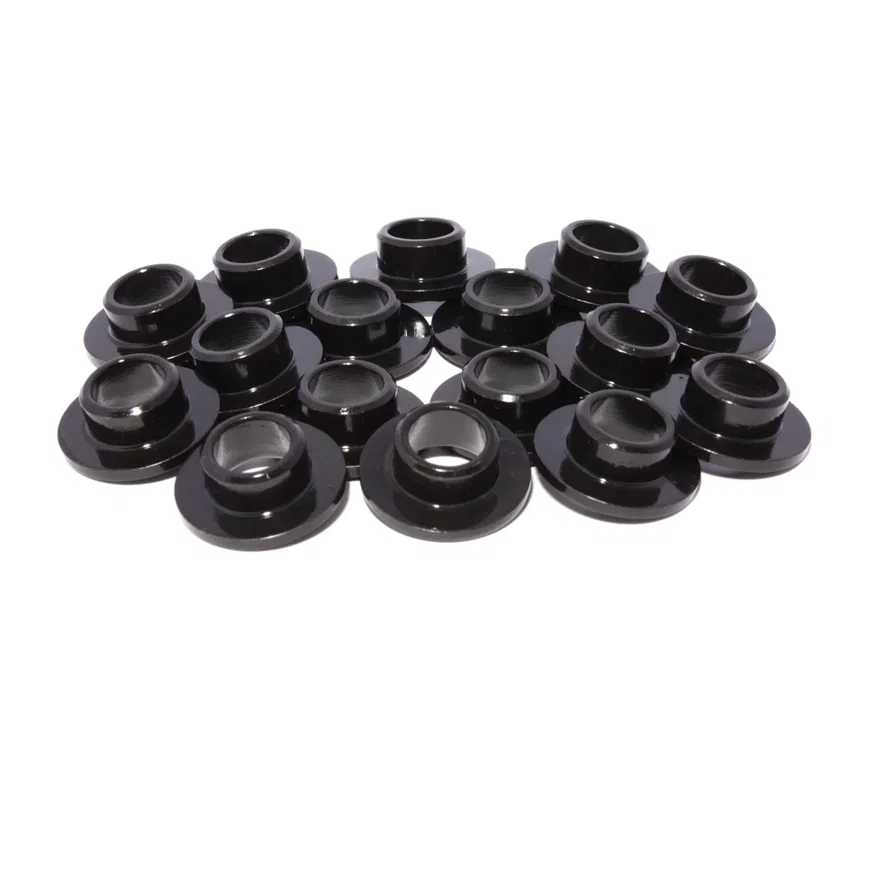

COMP Cams 10 Degree Steel Retainers for 26120 Beehive Spring

Part # 795-16SKU COM795-16

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Retainer Set
Amazon ASINB000N5MWMQ
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Compatible Lock632-16
Diameter 11.05 in
Diameter 20.645 in
Lock Angle10 deg
Retainer Material4140 Chromemoly Steel
Valve Spring Diameter1.095 in
Valve Stem SizeAll
UPC / GTIN00036584089018

Description

Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams Steel Retainers are the perfect solution to this problem. COMP engineers used 3D CAD with FEA to design retainers with a modern and advanced contoured top profiling for lower stress, increased lift and a reduction in mass. The retainers are CNC-machined to exact tolerances using CAD/Cam software. All COMP retainers use only high-grade SAE 4140 chromemoly Steel with no lead, <0.04% sulfur and a black oxide finish to prevent corrosion. COMP Cams Steel Valve Spring Retainers offer both unmatched looks and superior performance that set the industry standard. COMP Cams® Part# 795-16: Includes 16 Retainers. Steel Retainers for Part# 26120 Beehive Springs. 10& deg
